PALLET RACK - MANY ITEMS BELOW ARE ON "QUICK

SHIP" FROM THE FACTORY,

MEANING THEY SHIP ANYWHERE FROM 5-15 DAYS AFTER ORDER IS PLACED AND PAYMENT IS MADE



Pallet rack is for fork lift loading and other heavy-duty applications.

The pricing in the far right column below is f.o.b. Billings, MT and prices are shown for items usually on quick ship.  The second column from the right is pricing f.o.b. factory.  Another option not listed is f.o.b. Pennsylvania - please call for pricing and a pdf file e-mailed to you.

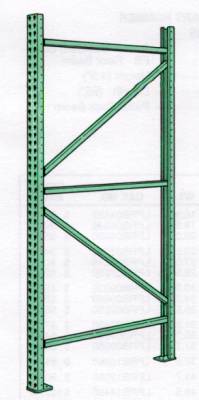

Uprights

Dimensions

(D" x H")

Frame No.

Column

Dimensions

Capacity Each

Shipping

Weight #

$ Price Each

f.o.b. factory

SD  57006

$ Price Each

f.o.b. Billings

MT  59102

24 x 96

36 x 96

42 x 96

42 x 120

48 x 96

F14 3" x 1-5/8" 15,220

36.0

39.0

41.0

51.0

42.0

45.87

50.24

50.14

63.79

56.36

55.49

60.70

60.97

77.34

67.75

36 x 96

36 x 144

36 x 192

42 x 96

42 x 120

42 x 144

42 x 168

42 x 192

48 x 120

48 x 144

48 x 192

F20 3" x 2-1/4" 21,149

48.0

72.0

97.

50.0

63.0

74.0

87.0

99.0

64.0

76.0

102.0

51.71

79.47

90.30

52.51

68.86

75.87

90.79

109.76

76.63

77.21

118.91

63.97

97.97

114.20

65.20

85.00

94.53

112.82

135.22

93.43

96.33

145.50

36 x 192

42 x 216

42 x 240

F24 3" x 3" 24,530

104.0

119.0

133.0

115.83

124.21

134.77

142.61

154.35

168.21

42 x 192 F30 3" x 3" 27,594 121.0 123.21 168.21
OTHER SIZES ARE AVAILABLE ON PRODUCTION SCHEDULE

Standard and Moment Resistant Base Plate Static Loading - The capacity chart below is of the previous dimensions from this manufacturer and vary slightly from the current offerings.  When a revised capacity chart is provided from the manufacturer, this portion will be updated, but for now the chart below can be used to get approximate measurements on current beams.  Please e-mail or call CSI Shelving for additional information about how to interpret this chart.  406-651-9134 tele.

First Beam Level  3214 3213  3314  3312
48" 20,020# 22,300# 25,820# 46,140#
54" 18,508# 20,000# 23,360# 40,680#
60" 16,840# 19,060# 22,060# 37,900#
66" 14,115# 16,240# 19,400# 32,440#
72" 12,940# 14,860# 18,060# 29,800#
78" 10,207# 13,000# 15,400# 24,740#
84" 8,750# 11,220# 14,120# 22,440#
90" 7,585# 9,480# 11,980# 18,7001#
96" 6,638# 8,760# 11,100# 17,180#
102" 5,858# 7,500# 9,580# 14,640#
108" 5,207# 7,000# 8,940# 13,580#



Load Beams

Length Face Beam No.

Capacity /

Pair

Shipping

Weight #

Each

$ Price Each

f.o.b. factory

SD  57006

$ Price Each

f.o.b. Billings

MT  59102

48" 3.5" T3600 6910 12.4 18.33 21.80
96"

2.5"

3.5"

4.125"

4.625"

5.125"

T2500

T3600

T4124

T4624

T5124

1735

3483

5028

6067

7596

21.0

22.7

25.0

26.9

28.7

21.49

22.73

24.09

25.19

26.33

26.78

28.42

30.30

31.82

33.38

108" 5.125" T5124 6788 32.0 28.44 36.25
120" 5.125" T5124 5877 35.4 30.56 39.14

144"

144"

6.0"

T5900

T6500

6511

8482

53.8

58.4

44.40

50.97

57.31

65.16

OTHER SIZES ARE AVAILABLE ON PRODUCTION SCHEDULE



The above dimensions are the previous dimensions from this manufacturer and vary slightly from the current offerings.  When a revised drawing is provided from the manufacturer, this portion will be updated, but for now the above chart can be used to get approximate measurements on current beams.

Beam Capacity Chart

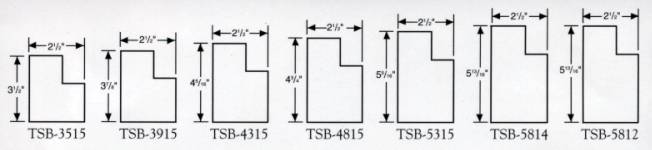

Length Seismic Zone TSB-3515 TSB-3915 TSB-4315 TSB-4815 TSB-5315 TSB-5814 TSB-5812
90" Zone 0-4

Weight/ea.

96" Zone 0-4

Weight/ea.

WILL UPDATE THIS CHART ONCE IT IS PROVIDED FROM THE MANUFACTURER.  THE MANUFACTURER CHANGED ITS PRODUCTION SPECIFICS.
108" Zone 0-4

Weight/ea.

120" Zone 0-4

Weight/ea.

144" Zone 0-4

Weight/ea.





COLUMN PROTECTORS Height Price EACH, F.O.B. Billings
12" 35.00, including 4" wedge anchors
24" 40.00, including 4" wedge anchors
36" 45.00, including 4" wedge anchors



PALLET RACK DECKING

The following lists common ways of decking pallet rack.



NO DECKING NO DECKING

Sometimes, a company will not deck over pallet rack or use pallet supports, but will use the pallets as their own supports.  Due to a high possibility of slippage, this is generally not recommended, especially where the pallets are high off the ground.

WOOD (2 X    MATERIAL)



2 X  WOOD DECKING

It is generally a good idea to at least place ( 2) 2x6" boards under each pallet.  Any 2x material can be used, but 2x4s can twist and fall through and 2x6s are minimally acceptable.  Safety is increased if a pallet is broken and/or weak, if a pallet is smaller than a normal pallet, and if a fork lift operator is inattentive.  It also allows the pallet to be slid into place.

COST:  GOING RATE OF 2X MATERIAL


WOOD (2 X    MATERIAL) OVERLAID WITH PARTICLEBOARD, PLYWOOD, OR OTHER SURFACE



2 X  WITH OVERLAY

Same as above, except a completely flat surface such as particleboard or plywood is laid over and secured to the 2x material.  This is useful when product is not necessarily always on a pallet.

COST:  GOING RATE OF 2X  AND OVERLAY MATERIAL





STEEL DECK SUPPORTS with or without overlay

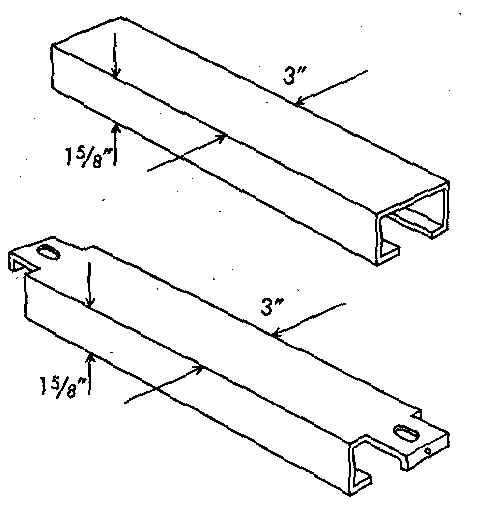

The items shown at left are metal deck supports, which are basically metal 2x4s, so to speak.  The one on the top is placed inside the beam steps and is very similar to a 2x4, except is is only 2-1/2" wide.  These have the possibility of twisting and falling through, and are used more commonly when a solid steel deck is laid over the top.  The one shown at left on the bottom has safety flanges on the front and the back which make it considerably more difficult for them to twist and fall through.  The flanges go over the top of the beam and are visible from the front of the rack.

COST:

36" FLANGED:  $ 6.36 each, 1662# capacity each

42" FLANGED:  $ 7.44 each, 1393# capacity each

48" FLANGED:  $ 8.55 each, 1198# capacity each



NON-FLANGED:  Do not currently sell, but that may change.

Overlay:  going rate for particleboard, plywood, steel, etc.





WIRE DECKING

Wire decking is a wire grid, usually a 2.5" x 4" grid made of 5-ga. (approx. 3/16" diameter) wire and supported underneath with (welded on) steel ribs.  The steel ribs sit inside the beam steps similar to a 2x or steel deck support above.  The most common style of wire decking has a "waterfall" front and back, where the grid wraps over the front and back beams (see drawing).  Other types are flush fit (deck sits inside the steps and below the top of the beams) and flared (for box beams without steps).  Wire decking is clean and neat, very quick and easy to install, improves visibility for upper shelves, and is useful for operations where fire mitigation systems are in use.

COST, all 2500# / panel capacity:



D" x W" Capac. Each Shipping # f.o.b. factory $ EACH f.o.b. Billings
36x46 2849 17.2   19.30
42x46 2500 19.8   20.94
42x52 2500 21.5 PLEASE 23.08
42x58 2500 22.8   24.53
48x46 2500 24.4 CALL 25.31
48x52 2500 26.3   27.52
48x58 2500 27.9   29.23

Other sizes and capacities are available.



CORRUGATED STEEL DECKING

Corrugated steel decking has limited application.  It provides a very heavy duty surface for standard pallet rack.  Another common use is for carpet racks, where 12'L panels are placed over two sets of rack.  They can help slow fires in situations where sprinkler systems are not being used.  Available in solid or perforated.

COST:

Generally about 25 - 50% more than wire decking, but a special quote is required due to fluctuations in steel prices.

Quotes made on request.
