| A | One basic upright |
| B | Two base shoes |
| C | One upright cap |
| D | Two pair base end covers |
| E | Two upright end covers |

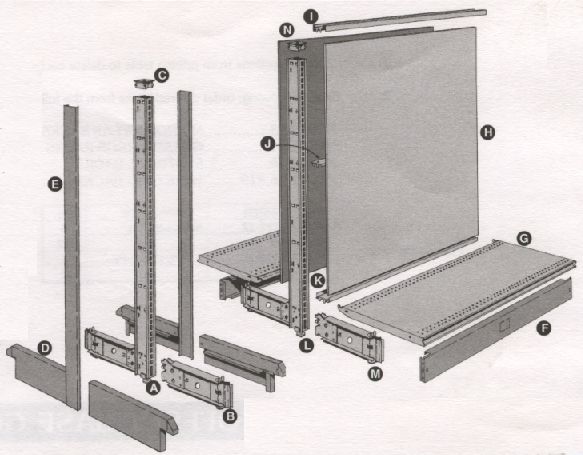

Island Sections
Each island section locks to the adjacent section for any length island run...each section consists of:
| F | Two kickplates. |
| G | Two "S" style base shelves. |
| H | Two backs, HH, PP or HP ...two piece backs at 78" and above. |
| I | One STL upper spanner. |
| J | One SC center spanner from 42" up to 96"...plus one SS splicer spanner at 78" and above. |
| K | One SL lower spanner. |
| L | One basic upright. |
| M | Two bases shoes. |
| N | One upright cap. |
 |

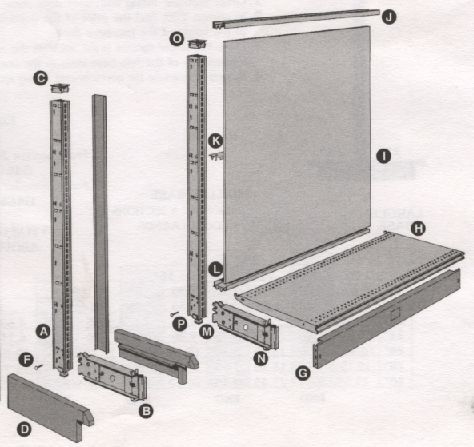

Wall Ends
One wall end is required to complete any length wall run...each wall end consists of:
| A | One basic upright. |
| B | One base shoe. |
| C | One upright cap. |
| D | One pair base end covers. |
| E | Two upright end covers. |
| F | One wall section retainer pin. |
Wall Sections
Each wall section locks to the adjacent section for any length wall run...each section consists of:
| G | One kickplate. |
| H | One "S" style base shelf. |
| I | One back, H or P, or two backs, HH, PP, or HP...two piece backs at 78" and above. |
| J | One STL upper spanner. |
| K | One SC center spanner from 42" up to 96"...plus one SS splicer spanner at 78" and above. |
| L | One SL lower spanner. |
| M | One basic upright. |
| N | One base shoe. |
| O | One upright cap. |
| P | One wall section retainer pin. |

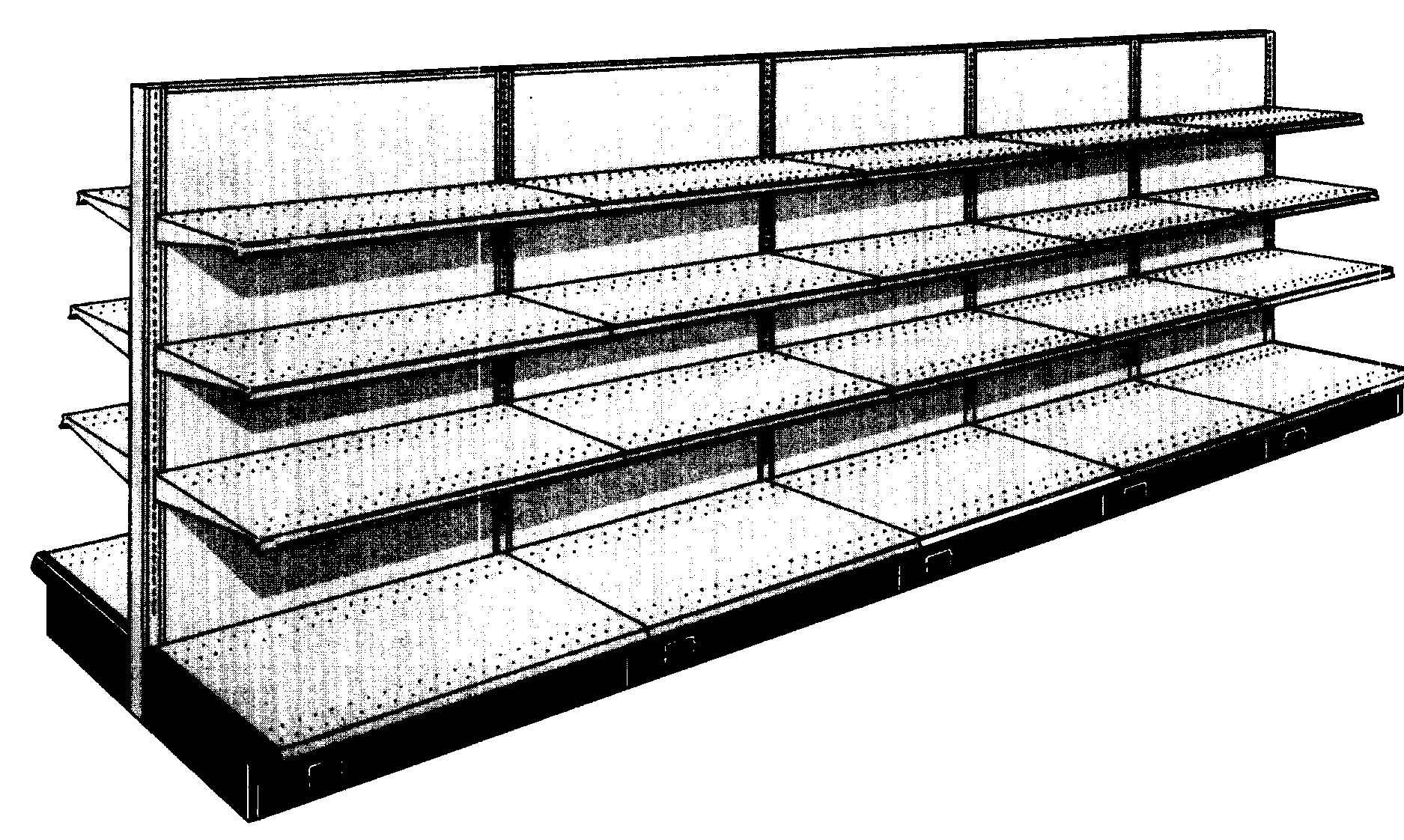

Complete Shelving With Adjustable Upper Shelves
The following unit is a typical gondola (2-sided) shelving run. A wall unit looks basically the same except there are shelves only on one side.
